12" 9-32V | 47W
22" 9-32V | 95W

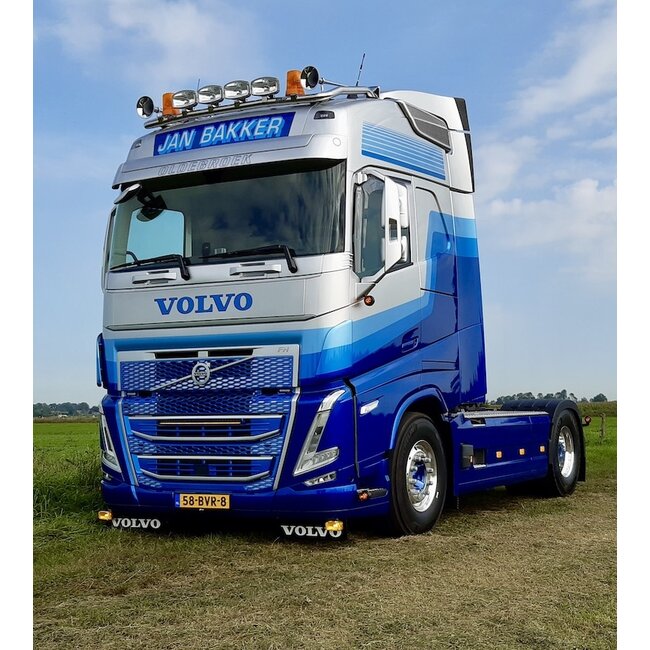

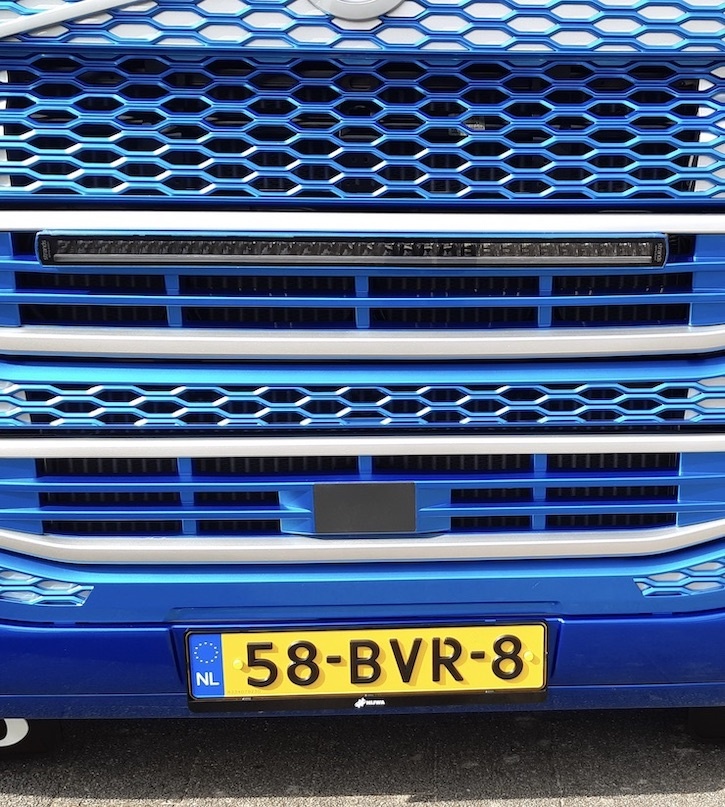

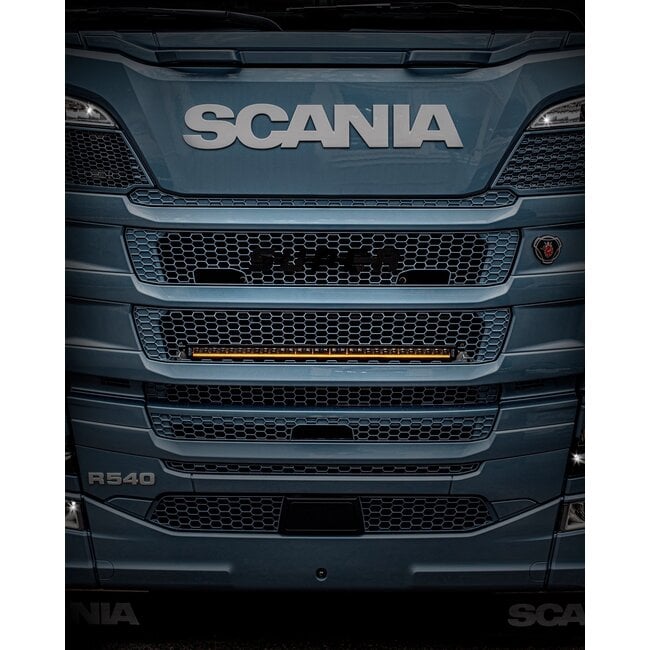

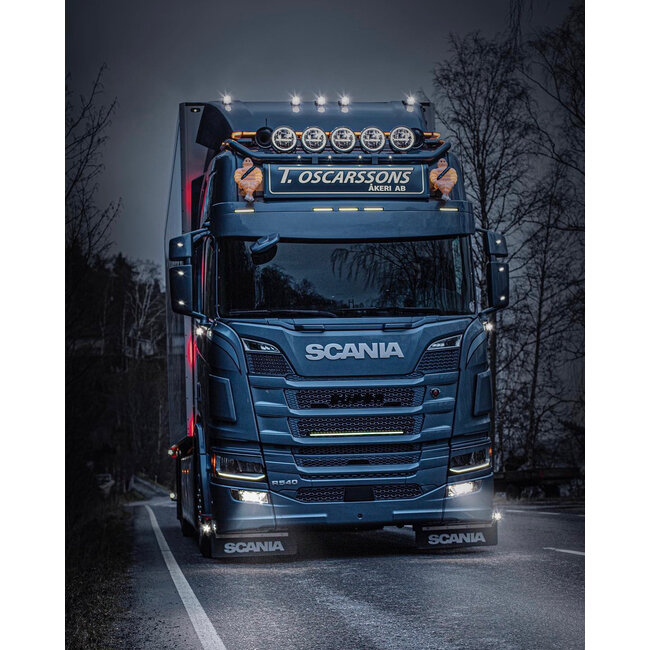

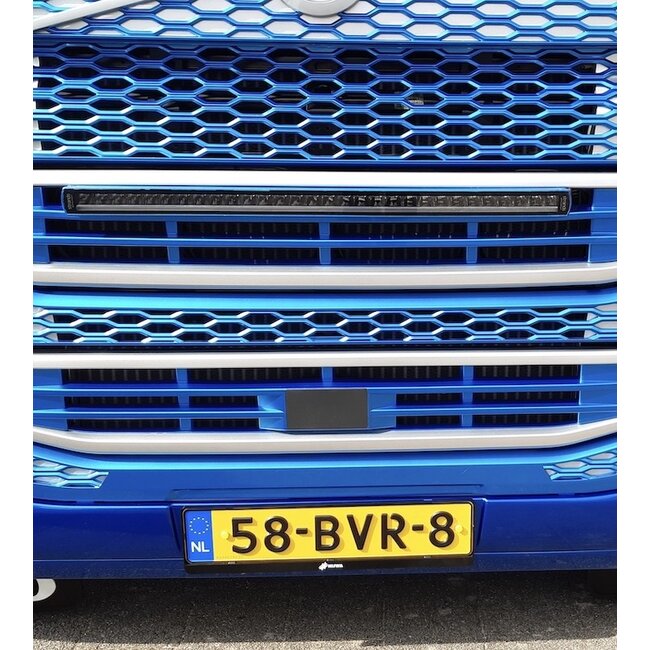

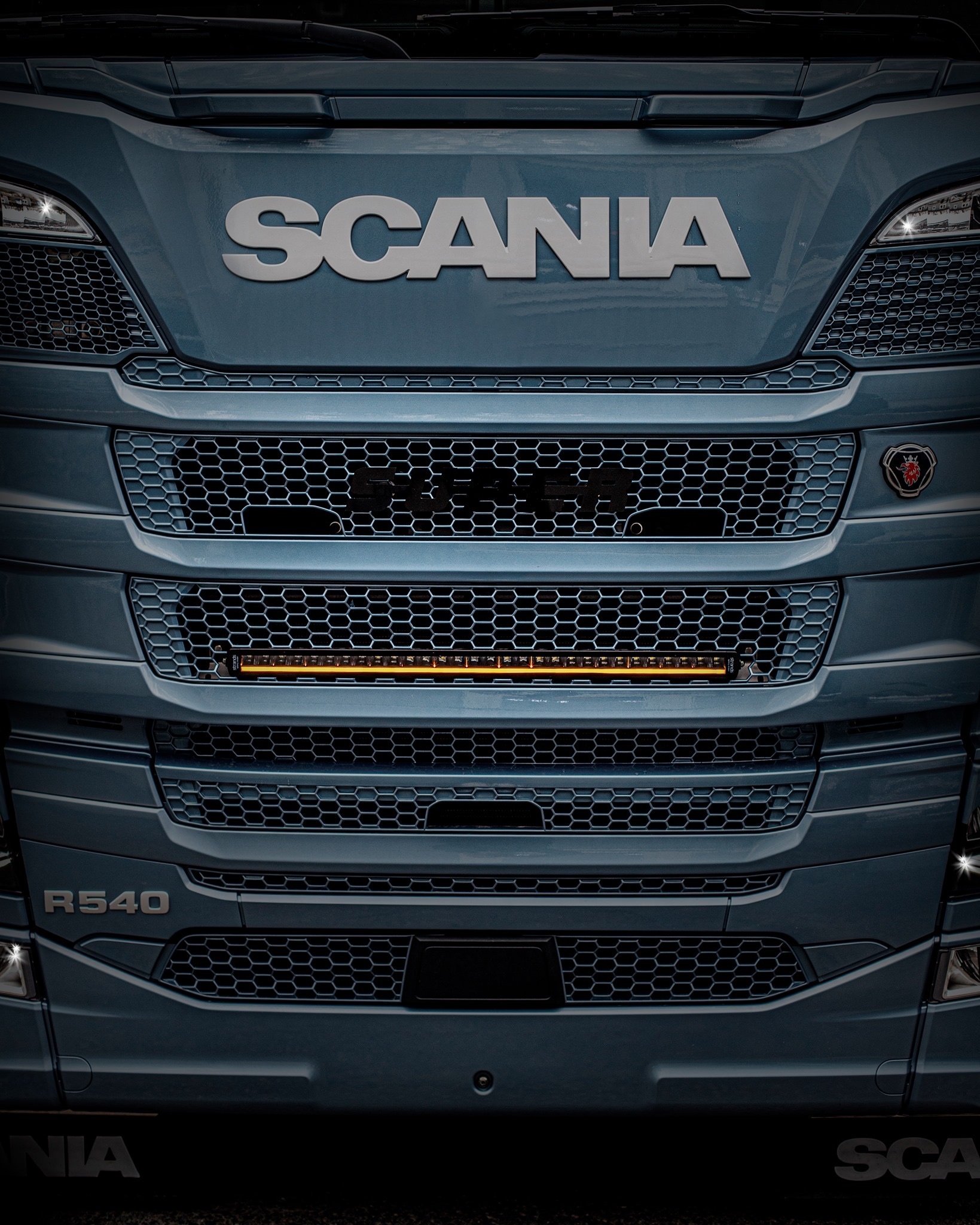

32" 9-32V | 146W (Foto Volvo & Scania)
42" 9-32V | 199W
50" 9-32V | 241W
- Type of lamp LED
- Voltage (V DC) 9-32V DC
- 1 LUX @ m 425
- IP-class IP67/69K
- Colour housing Black
- Colour lens Clear
- Colour LED´s White
- Beam pattern Combo
- Position light Yes white and orange
- Connection DT-4
- Cable length (mm) 500
- Material bracket Stainless steel
- Material housing/chassi Aluminium
- Material lens Polycarbonate
- Height including bracket (mm) 65
- Operating temperature -20°C – +45°C
- ADR-approved No
- E-approved Yes
- According to regulation ECE R112
- Reference number 37.5
- EMC ECE R10
Aansluitschema:
- Zwart: - Aarde
- Rood: + LED bar
- Geel: + amber positielicht
- Wit: + wit positielicht
- Groen: + amber flitser
