- Amplifies the original dimmer signal without overloading the system.

- Specially for interior lighting in Volvo and Scania NG trucks

- 5A to 15A and can be used with both a 5V and a 24V dimming signal.

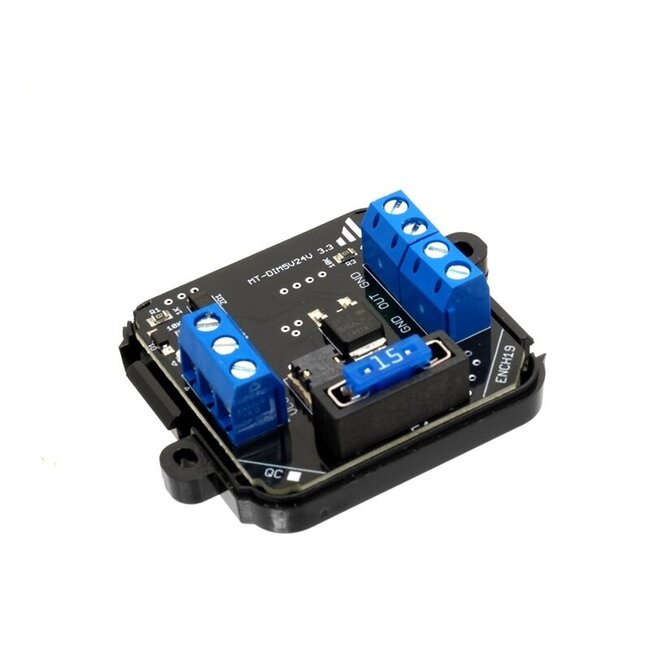

- 15A fuse (low profile mini) on the printed circuit board in the housing

- Connect via screw terminals.

- Mount the controller as close to the dimmer as possible for optimal performance.

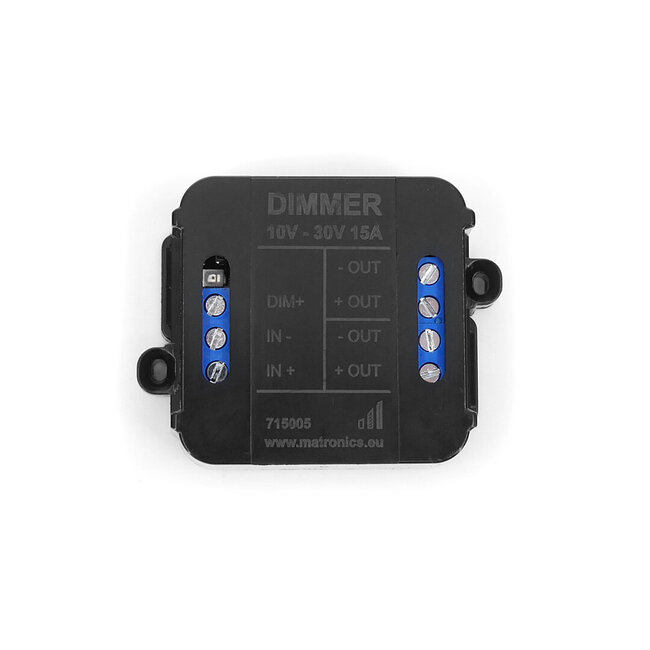

Connections:
INPUT

• DIM+ Plus from the Scania or Volvo dimmer is connected to this (5V)
• IN - Connects to the negative (ground) of the truck (12V/24V)
• IN+ Connected to the positive terminal of the truck

OUTPUT

• OUT+ Plus output to the light sources (12V/24V)
• OUT- Min output to the light sources
