LED replacement set AEB rotating beacon - Give your rotating beacon even more power

With this LED replacement set, you can change the color of your AEB rotating beacon. The replacement set is available in three versions:

• Yellow/blue
• Yellow/red
• Yellow/green

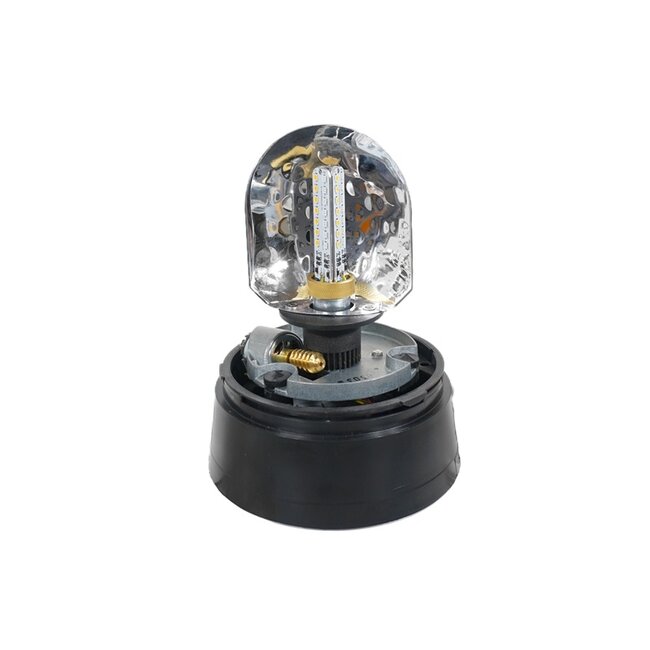

The AEB LED replacement beacon set is specifically designed as a direct replacement for the original H1 halogen bulb in the AEB 590 and 595 beacons. The LED unit is dual-color, but you don't need to use the color changer. You can simply leave it on in a single, solid color.

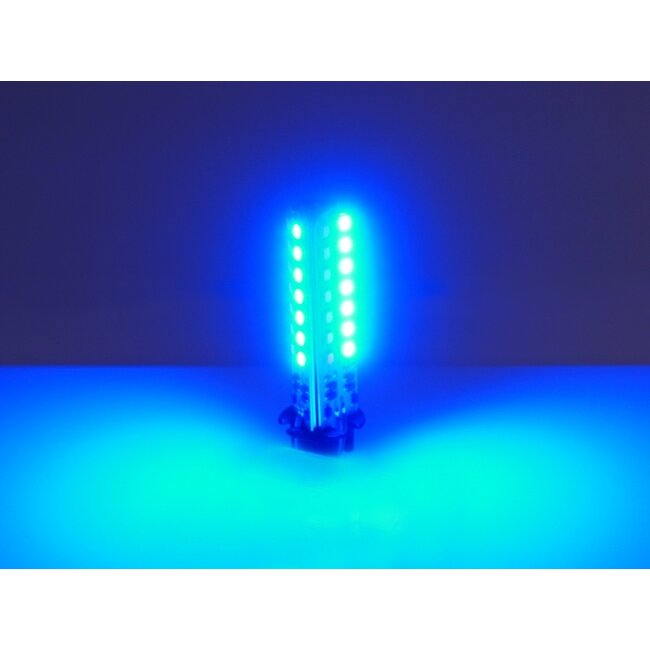

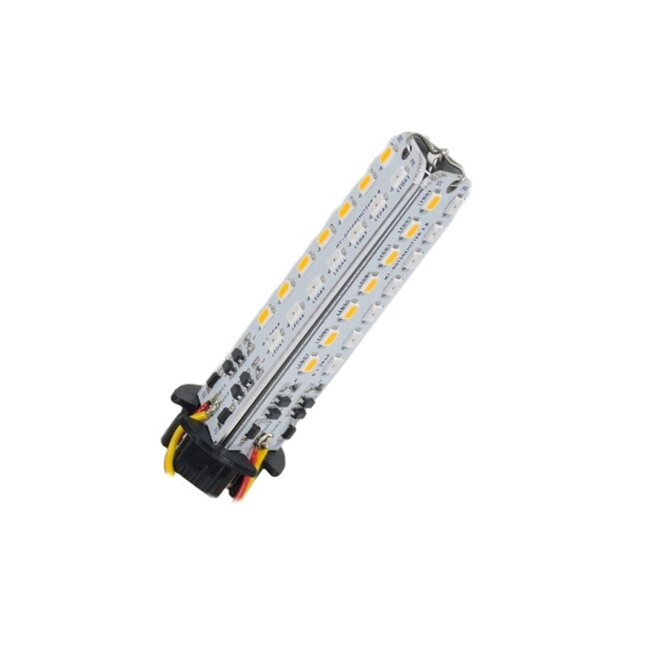

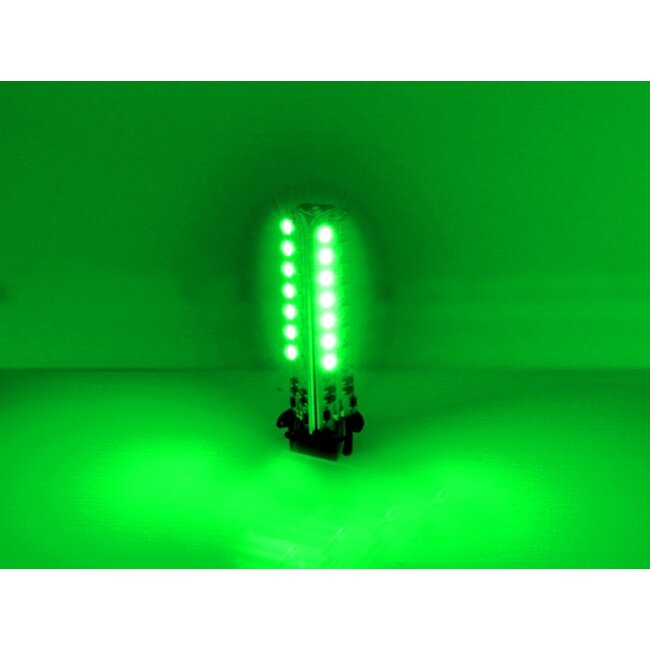

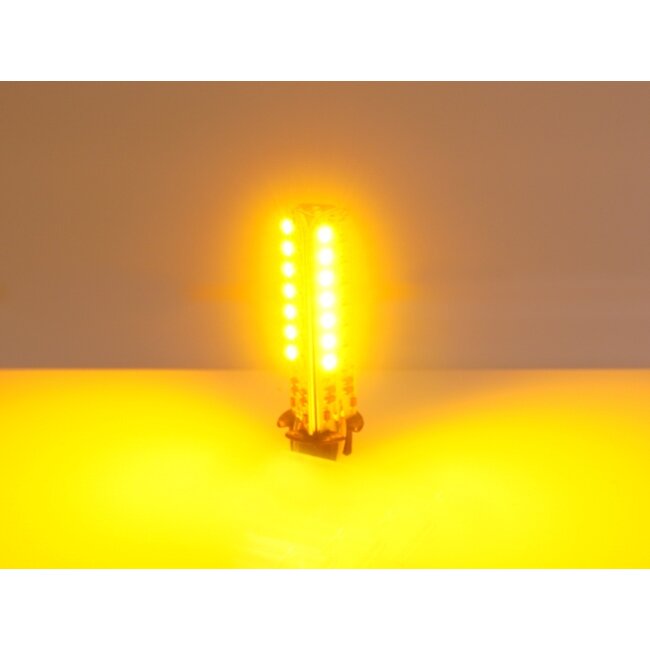

Each light source contains 42 powerful LEDs (21 per color) and operates exclusively within a transparent lens. This gives your beacon a modern, bright, and low-maintenance light source.

Assembly

Installing the replacement kit is very simple:

1. Unscrew the glass from the beacon.

2. Unscrew the nut and remove the original H1 bulb.

3. Cut the thread that runs up through the foot.

4. Insert the new LED light source and secure it with the nut.

5. Remove the top of the lamp by removing the three larger screws.

6. Connect the colored wires in the lamp housing.

The easiest way is to connect them to the existing input wire.
Note: If the polarity is reversed, the beacon will rotate the other way. You can also route the wires separately if you prefer.
