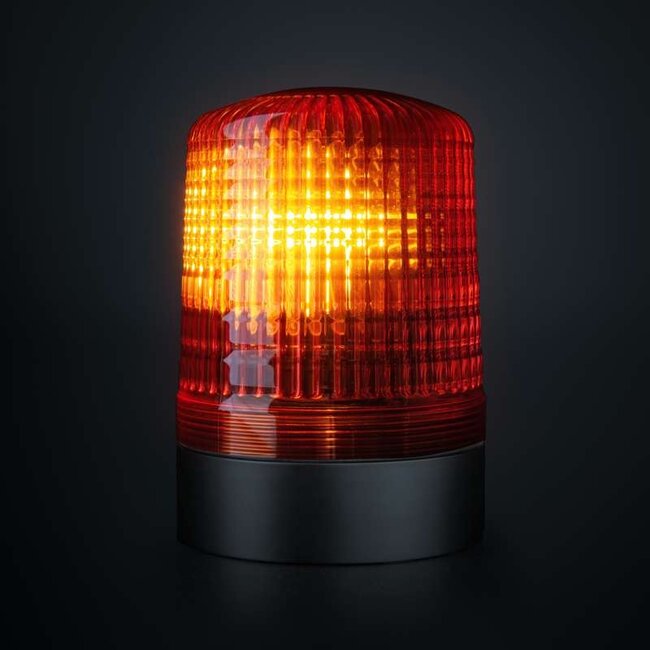

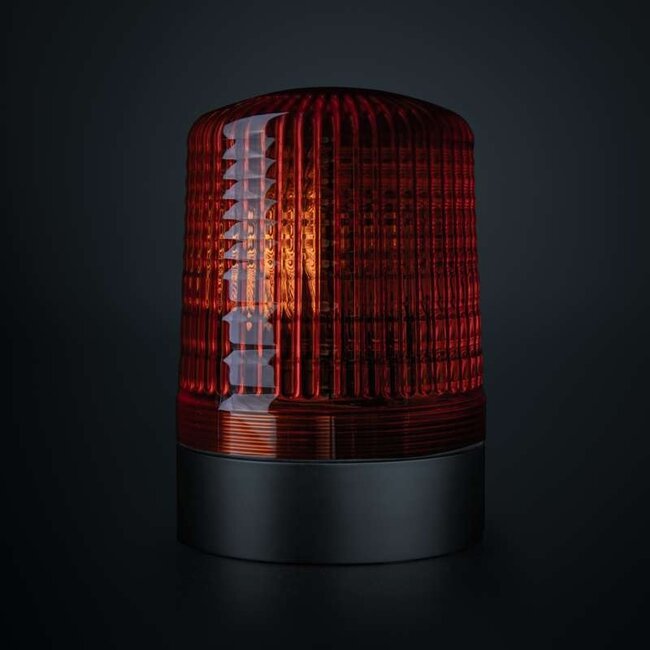

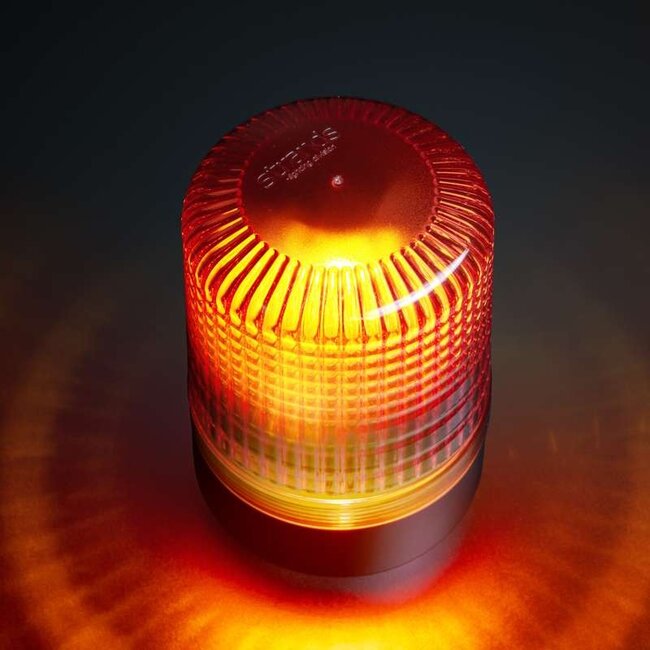

The IZE LED rotating beacon combines timeless design with modern, reliable performance. This rotating beacon is exactly what your truck needs. Read more.

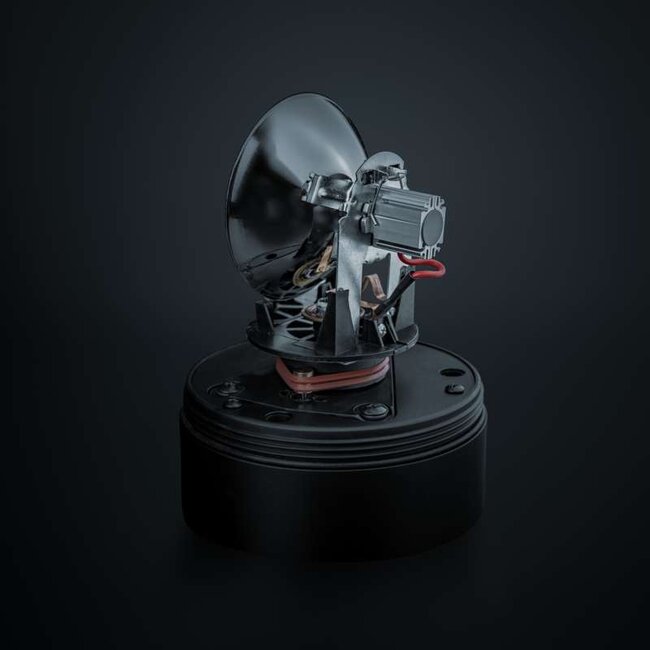

The IZE LED rotating beacon combines timeless design with modern, reliable performance. Most modern rotating beacons have LEDs that illuminate sequentially around the light. The IZE LED Lighthouse features powerful LEDs and a rotating reflector, just like the original beacons.
With an IP66 rating and durable materials, it's protected against water, dirt, and corrosion. At 191.5 mm tall, 135 mm in diameter, and with a CC of 90.9/103.9 mm, it feels sturdy and looks great on any vehicle.
The light is installed with a 300mm cable, and the package includes all mounting hardware: M4 screws, ST4 self-drilling screws, nuts, washers, and a rubber pad. It has a low power consumption of 13W and operates on 12-24V.
| Feature | Value |
|---|---|
| Unit | PCs |
| Voltage | 12–24V DC |
| Theoretical ability | 18W |
| Consumption | 13.0W |
| Features | Rotatable warning light |
| Patterns | 1 |
| Connection | Cable |
| Cable length | 300mm |
| Casing color | Black |
| Color lens | Amber |
| Color LEDs | Warm white |
| Housing/chassis material | Polycarbonate |
| Lens material | Polycarbonate |
| Height | 193.5mm |
| Diameter | 134.5mm |
| CC | 90.9mm / 103.9mm |
| Weight | 0.74kg |
| IP class | IP66 |
| Working temperature | -20 – +60°C |
| E-approved | Yes |
| According to regulations | ECE R65 |
| EMC | ECE R10 |
| Additional information | H1 LED |
