IZE LED OG spotlight oval warm white/orange position light
Artikelnummer: STR-901011Modern power in an old-school style. With 11,800 lumens and a range of over 480 meters, this spotlight gives your truck the look you're looking for. Read more.
- Everything for the fattest trucks
- Old-fashioned service!
- Personal expert advice
Product description

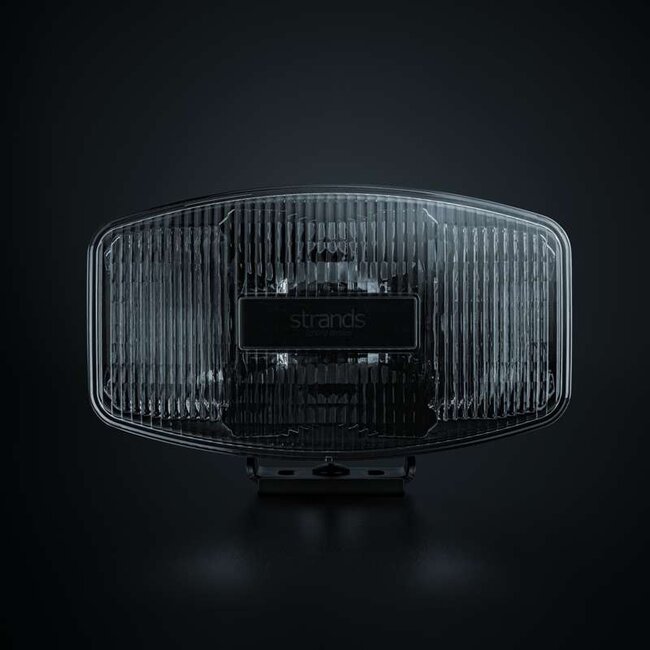

Strands IZE LED OG spotlight oval - The modern old-school spotlight
The Strands IZE LED OG oval spotlight delivers a powerful, optimized beam with a true 11,800 lumens and a range of over 480 meters in Xperience mode. The E-mode is E-approved R148/149 with reference number 20, making it perfect for European roads and challenging weather conditions.
Features

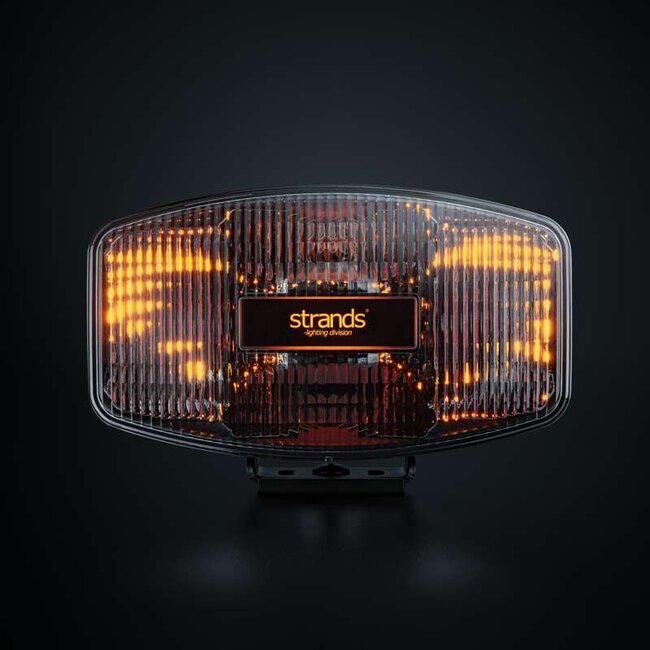

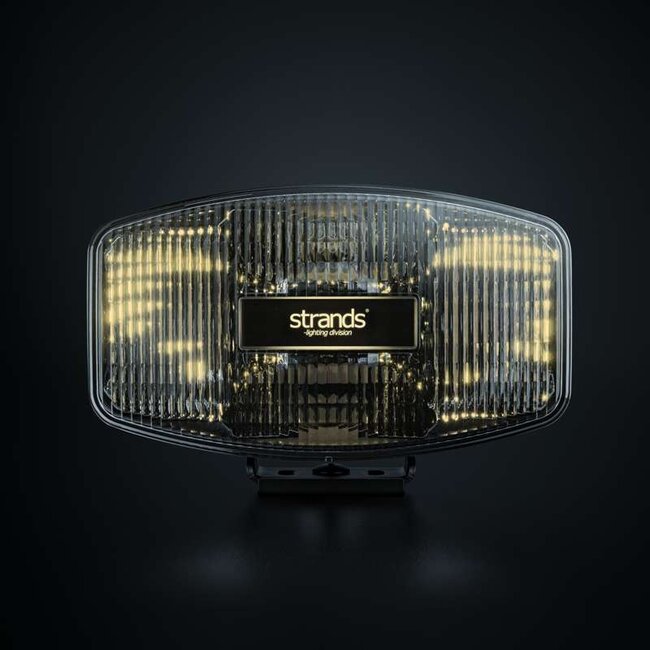

Like all products in the IZE LED family, it combines sleek, timeless style with modern performance. Warm white and amber position lights create a distinctive look and remain invisible when switched off. When activated, they produce a diffused glow through the textured lens.
Installation is easy with the 2.5m cable, and everything you need is included: bracket, screws, nuts, bolts, washers, and silicone pad. It has an IP rating of IP68/69K and is compatible with 10-36V.
Specifications
| Feature | Value |
|---|---|
| Unit | PCs |
| Voltage | 10–36V DC |
| Theoretical ability | 160W |
| Consumption | 145.0W |
| Features | High beam, warm white and amber position light |
| Consumption per function | Xperience mode: 145W / E-mode: 34W / Warm white position light: 0.75W / Amber position light: 0.75W |
| Theoretical lumens | 13,500 lm |
| Effective lumens | Xperience mode: 11,800 lm / E-mode: 3,500 lm |
| 1 lux @ | Xperience mode: 488 m / E-mode: 274 m |
| Color temperature | 4500K |
| Light image | Optimized beam |
| Connection | Cable |
| Cable length | 2500mm |
| Casing color | Black |
| Color lens | Bright |
| Color LEDs | Warm white, white, amber |
| Bracket material | Stainless steel |
| Housing/chassis material | Aluminum |
| Lens material | Polycarbonate |
| Length | 247mm |
| Depth | 95mm |
| Height | 141mm |
| Height incl. bracket | 161mm |
| Weight | 1.98kg |
| IP class | IP68/69K |
| Working temperature | -40 – +60°C |
| E-approved | Yes |
| According to regulations | ECE R148, R149 |
| Reference number | 20 |
| EMC | ECE R10 |
