Extremely wide beam with 12076 lumens of bright, white light
-
Illuminates more than 500 meters ahead for maximum visibility
-

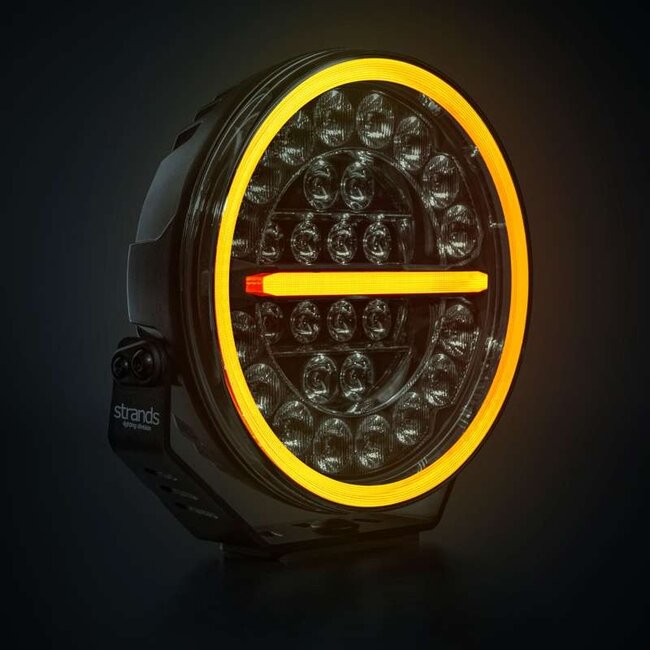

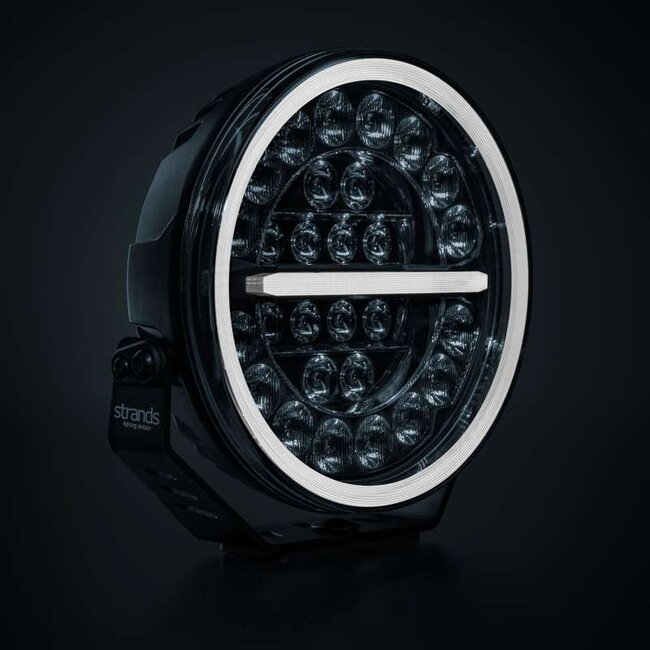

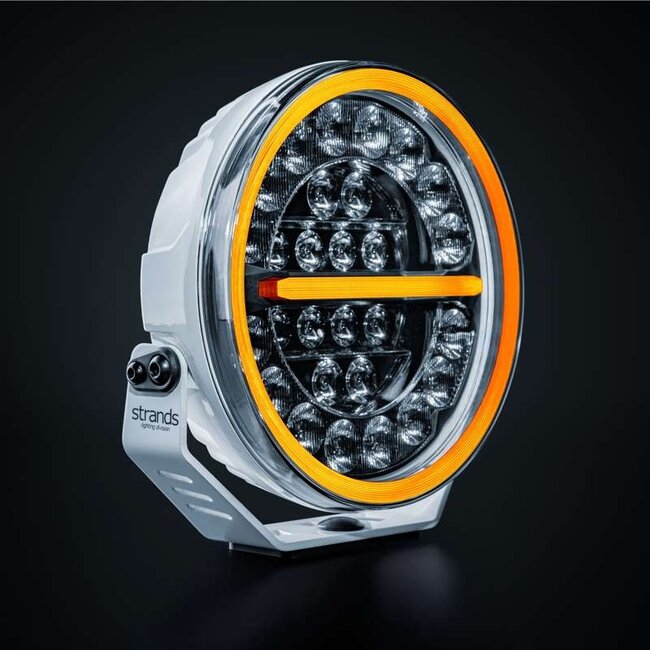

Features a unique 'floating' light with two modes
-
Light halo around the LEDs for a weightless, intense glow
-
Modern, invisible design that fits seamlessly into your vehicle
-
Developed with advanced technology and attention to detail
Specifications
| Feature | Value |
|---|---|
| Unit | PCs |
| Voltage | 10–48V DC |
| Theoretical ability | 150W |
| Consumption | 145.0W |
| Features | Driving light, position light, warning light |
| Consumption per function | Warning light: 21W (night), 36W (day); White position light: 1W; Amber position light: 1.5W |
| Patterns | 2 |
| Theoretical lumens | 16,800 lm |
| Effective lumens | 12,076 lm |
| 1 lux @ | 450 m |
| Color temperature | 5700K |
| Light image | Optimized beam |
| Beam angle | 32.2° |
| Connection | DT-6PIN |
| Cable length | 150mm |
| Casing color | White |
| Color lens | Bright |
| Color LEDs | White/amber |
| Bracket material | Stainless steel |
| Housing/chassis material | Aluminum |
| Lens material | Polycarbonate |
| Depth | 85mm |
| Height incl. bracket | 239mm |
| Diameter | 220mm |
| Weight | 3.24kg |
| IP class | IP67 |
| Working temperature | -40 – +65°C |
| E-approved | Yes |
| According to regulations | ECE R65 Class 2, R148 (R7), R149 (R112) |
| Reference number | 50 |
| EMC | ECE R10 |
